Original price was: $363.00.$97.99Current price is: $97.99.
- Safe Payments, Happy Customers
- Reliable Payments for Reliable Shopping
- Worry-Free Shopping with Safe Payments
- The quality solution for all your needs.
- BTUs: 40,000
- Viewing Area: 39 1/2″ W x 26 3/8″
- Included Items: Wall Switch And Wire, Decorative Burner, Ignition System, Solid Glass Front, Firebox, Painted Black Interior Walls
- Required Items: Logs, Front, Venting
- Framing Dimensions:
Cleanview Model- 47 3/8″W x 43 1/16″H x 19 1/2″D
Louver Model- 48 3/8″W x 49 1/8″H x 22″D - Warranty: Limited Lifetime

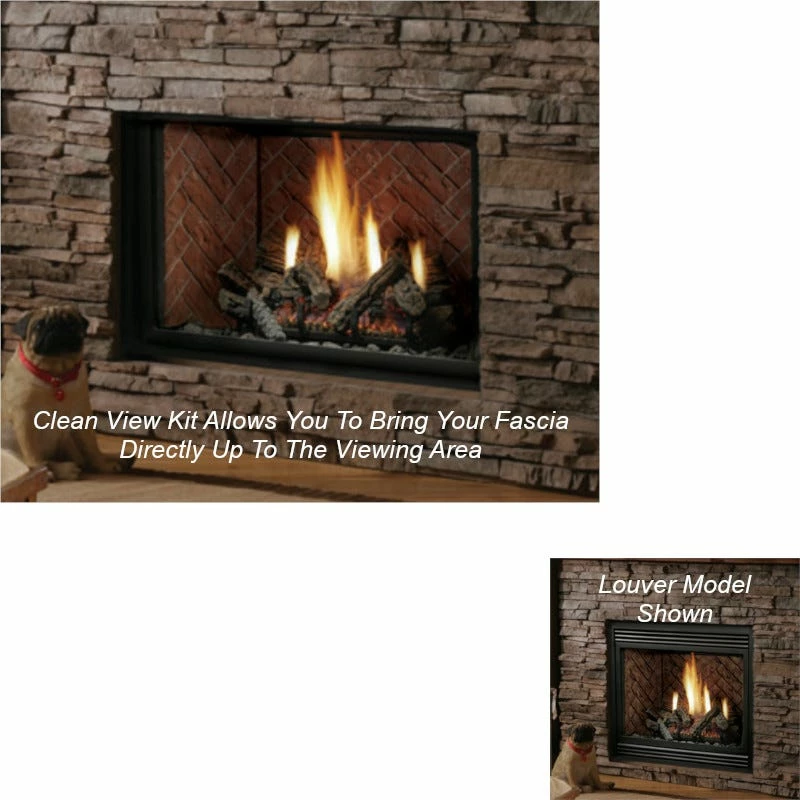

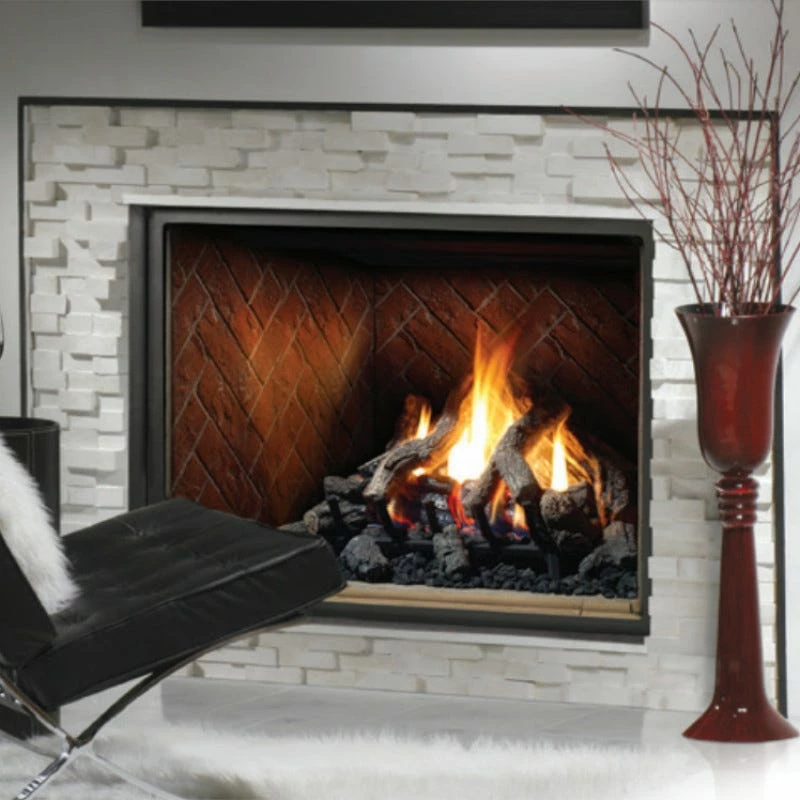

Bring warmth and relaxation into your home with the Kingsman Gas Fireplace
The Kingsman ZCV42 gas direct vent fireplace is popular for those looking for a larger gas fireplace. Create a traditional fireplace look with logs of add the fireglass burner and fireglass for a more contemporary look. Optional ultra-modern cannonballs will transform this fireplace into a unique heating feature.
This fireplace is hugely customizable. Choose one or all of the many customizable option to make this the fireplace that is right for your home. The millivolt valve system doesn’t use electricity, instead it has a standing pilot which allows operation during a power outage with hi-low heat and flame adjustment. The design of this fireplace allows for a completely sealed system that does not compromise the air quality of your home.
Additional Information
- Ignition Type(s): Reliable Standing Pilot OR Gas Saving Electronic Ignition With Battery Backup
- Venting Size/Type: 4″”ID x 7″”OD KIngsman Vent Or Can Be Converted To DuraVent 4″”ID x 6 5/8″”OD
- Vent Location: Top- At A 30 Degree Angle
- Certification: ETL, CSA
KINGSMAN FIREPLACES
Kingsman fireplaces are renowned for their attention to detail. They are not a company that will rush a product to market just to keep up with a quick trend. The appearance of their fireplaces are clean and timeless. The realism of their flame and logs is unmatched. If you are looking for a reliable, budget friendly fireplace, Kingsman is the fireplace you want to own.
GAS DIRECT VENT FIREPLACES
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism.
- BTUs: 40,000
- Viewing Area: 39 1/2″ W x 26 3/8″ H
- Venting Type- 4″ x 7″ Kingsman Flex OR Duravent 4″ x 6 5/8″ Rigid (With Adapter)
- Vent Location- Top At A 30 Degree Angle
- ETL and CSA Approved
- Warranty- Lifetime on the firebox, 1 year on most everything else
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism. The term “direct vent refers to the pipe within the pipe venting system that allows the fireplace to be vented both vertically or horizontally (see the manual below for more specifics ). The firebox is a sealed combustion chamber that exhausts through fireplace places inner vent pipe while drawing in an equal amount of outside air for combustion through the outer pipe. You do not use any room air that you have already paid to heat to operate the appliance. These fireplaces can be installed into wood-framed cavities while being mindful of minimal clearances around the fireplace (see the appliance manual below). Accessories like remote controls, blowers, interior liners, and different fascias (on most models) make it possible to stylize the fireplace to your homes needs.
- BTUs: 40,000
- Viewing Area: 39 1/2″ W x 26 3/8″ H
- Venting Type- 4″ x 7″ Kingsman Flex OR Duravent 4″ x 6 5/8″ Rigid (With Adapter)
- Vent Location- Top At A 30 Degree Angle
- ETL and CSA Approved
- Warranty- Lifetime on the firebox, 1 year on most everything else
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism. The term “direct vent refers to the pipe within the pipe venting system that allows the fireplace to be vented both vertically or horizontally (see the manual below for more specifics ). The firebox is a sealed combustion chamber that exhausts through fireplace places inner vent pipe while drawing in an equal amount of outside air for combustion through the outer pipe. You do not use any room air that you have already paid to heat to operate the appliance. These fireplaces can be installed into wood-framed cavities while being mindful of minimal clearances around the fireplace (see the appliance manual below). Accessories like remote controls, blowers, interior liners, and different fascias (on most models) make it possible to stylize the fireplace to your homes needs.
- BTUs: 40,000
- Viewing Area: 39 1/2″ W x 26 3/8″ H
- Venting Type- 4″ x 7″ Kingsman Flex OR Duravent 4″ x 6 5/8″ Rigid (With Adapter)
- Vent Location- Top At A 30 Degree Angle
- ETL and CSA Approved
- Warranty- Lifetime on the firebox, 1 year on most everything else
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism. The term “direct vent refers to the pipe within the pipe venting system that allows the fireplace to be vented both vertically or horizontally (see the manual below for more specifics ). The firebox is a sealed combustion chamber that exhausts through fireplace places inner vent pipe while drawing in an equal amount of outside air for combustion through the outer pipe. You do not use any room air that you have already paid to heat to operate the appliance. These fireplaces can be installed into wood-framed cavities while being mindful of minimal clearances around the fireplace (see the appliance manual below). Accessories like remote controls, blowers, interior liners, and different fascias (on most models) make it possible to stylize the fireplace to your homes needs.
- BTUs: 40,000
- Viewing Area: 39 1/2″ W x 26 3/8″ H
- Venting Type- 4″ x 7″ Kingsman Flex OR Duravent 4″ x 6 5/8″ Rigid (With Adapter)
- Vent Location- Top At A 30 Degree Angle
- ETL and CSA Approved
- Warranty- Lifetime on the firebox, 1 year on most everything else
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism. The term “direct vent refers to the pipe within the pipe venting system that allows the fireplace to be vented both vertically or horizontally (see the manual below for more specifics ). The firebox is a sealed combustion chamber that exhausts through fireplace places inner vent pipe while drawing in an equal amount of outside air for combustion through the outer pipe. You do not use any room air that you have already paid to heat to operate the appliance. These fireplaces can be installed into wood-framed cavities while being mindful of minimal clearances around the fireplace (see the appliance manual below). Accessories like remote controls, blowers, interior liners, and different fascias (on most models) make it possible to stylize the fireplace to your homes needs.

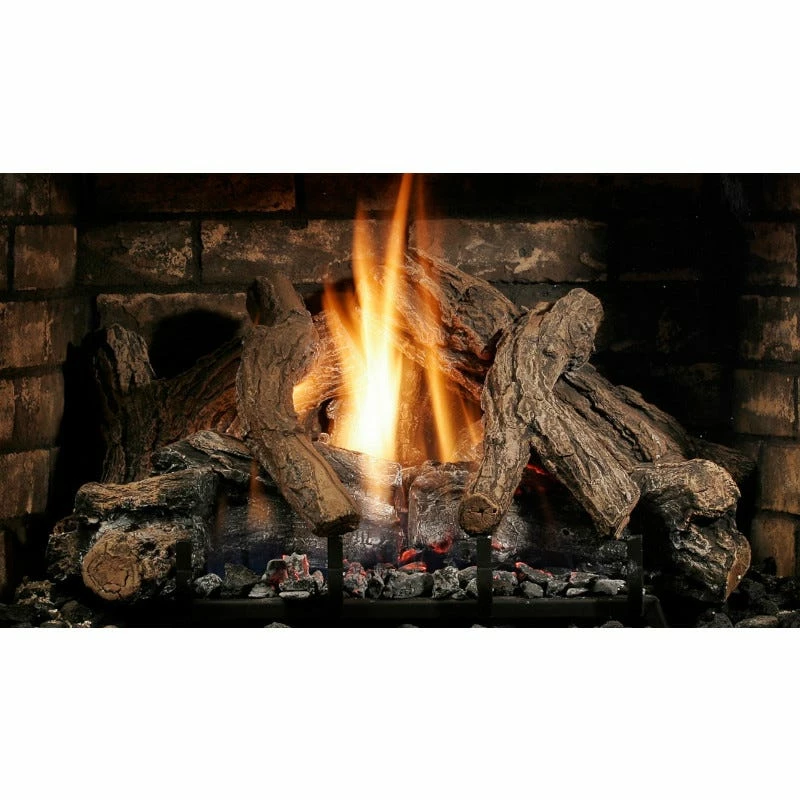

- Classic Oak log set for Kingsman fireplaces
- See manual for proper placement
- Not for use with other direct vent appliances
- For use with Kingsman HBZDV4736 Fireplaces

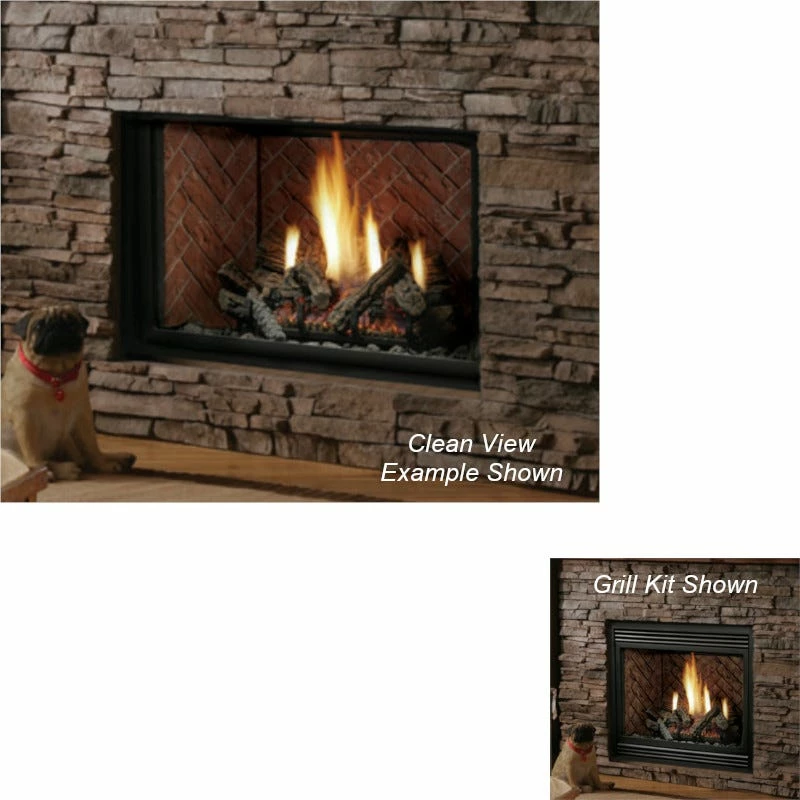

- Allows non-combustible materials to be brought close to the viewing area
- See manual for framing changes with this front
- For use with Kingsman HBZDV4736 Fireplaces

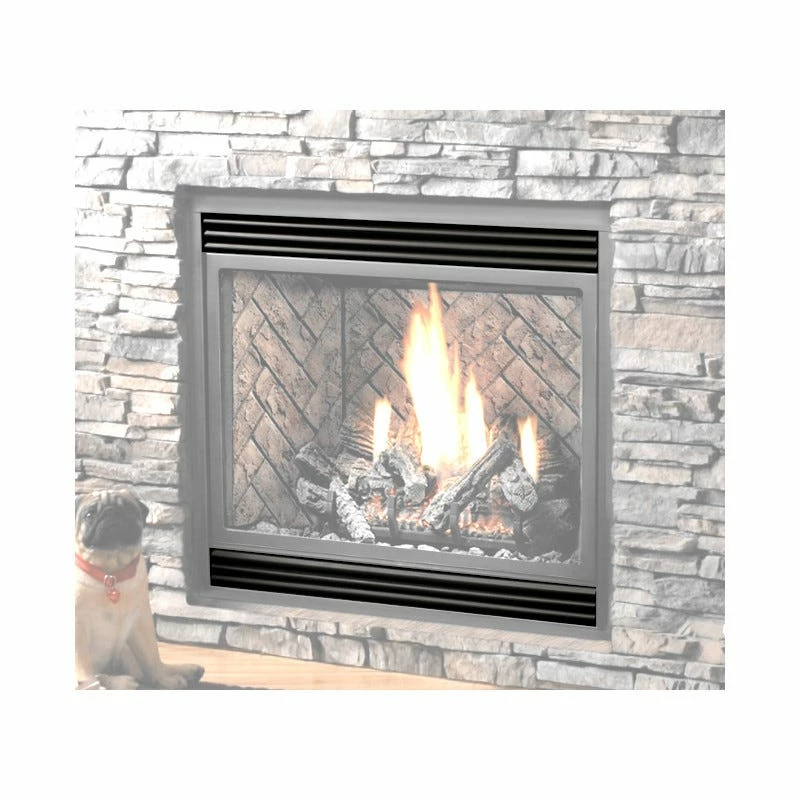

- Circulating louvers
- See manual for framing dimensions with these louvers
Fan Kit w/Variable Wall Mount Speed Control Temperature Sensing
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting â NG
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting â LP
- Works with Kingsman standing pilot fireplaces and stoves
- Has a built in thermostat in the handheld transmitter- Control the temperature from wherever the remote is located
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
Kingsman Remote Control Millivolt Standing Pilot â On/Off Thermostat.
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Has a built in thermostat in the handheld transmitter- Control the temperature from wherever the remote is located
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
Remote Control – Electronic Pilotless Ignitionâ On/Off/Thermostat
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting/Fan Speed Adjustment â LP
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting/Fan Speed Adjustment â NG
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
- For use with Kingsman HBZDV 47″ Fireplaces
- Traditional Masonry Look
- Back and side walls- 3 pieces
- For use with Kingsman HBZDV 47″ Fireplaces
- Red Herringbone Look
- Back and side walls- 3 pieces
- For use with Kingsman HBZDV 47″ Fireplaces
- Red Herringbone Look
- Back and side walls- 3 pieces
- For use with Kingsman HBZDV 47″ Fireplaces
- Porcelainized steel reflects flames
- Back and side walls- 3 pieces
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Round Termination Vent Starter Kit â 3 FT Length Termination, Wall Thimble, 36″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Square Termination Vent Starter Kit â 3 FT Length Termination, Wall Thimble, 36″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Round Termination Vent Starter Kit â 5 FT Length Termination, Wall Thimble, 60″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Square Termination Vent Starter Kit â 5 FT Length Termination, Wall Thimble, 60″ Flex Pipe, Screws, Mill Pac
This kit includes all of the required equipment to vent a Direct Vent fireplace vertically 15ft through a roof using 4″ x 6 5/8″ venting.
- 15ft Of 4″ x 6 5/8″ Vent Pipe
- Fire Stop For Chase Or Attic Penetrations
- 0-6/12 Roof Flashing For Roof Penetrations
- Storm Collar To Seal The Seam At The Roof Flashing
- Chimney Cap To Keep Weather Out And Critters From Getting In
***As individual installations may vary, it is possible that additional equipment is needed or that components may not be needed and returned if not used
DIRECT VENT CHIMNEY LINERS
Whether installing into a masonry chimney or into an a round metal Class A Chimney pipe, direct vent appliances need the proper components to function properly and safely. Direct vent stoves and fireplaces rely on equal amounts of incoming air and exhausting air or the unit just won’t run right. DuraVent tests their products to keep this proper balance so your appliance will function correctly and operate safely.
Single Wall
Double Wall
Class A
This kit includes all of the required equipment to vent a Kingsman Direct Vent fireplace vertically 25ft through a roof using 4″ x 6 5/8″ venting.
- Kingsman To Duravent Adapter
- 25ft Of 4″ x 6 5/8″ Vent Pipe
- 2 – Fire Stops For Chase Or Attic Penetrations
- 0-6/12 Roof Flashing For Roof Penetrations
- Storm Collar To Seal The Seam At The Roof Flashing
- Chimney Cap To Keep Weather Out And Critters From Getting In
Features
***As individual installations may vary, it is possible that additional equipment is needed or that components may not be needed and returned if not used
DIRECT VENT CHIMNEY Pipe
Direct vent fireplaces are the most popular fireplaces installed into new homes and remodels. All of these fireplaces require a specific type of concentric pipe â a pipe within a pipe. The center pipe exhausts the gases from the fireplace while the outer layer between the two pipes brings in fresh air for the fire to burn. An ingenious system that keeps your already heated air from going up the chimney.
| SKU | 46DVAKINGKIT-25 |
|---|---|
| Weight | 25.000000 |
| Manufacturer | DuraVent |
| Additional Information | Viewing Area: 39 1/2" W x 26 3/8" H |
| Heating BTU | 40,000 |
| Type | Chimney Kit, Direct Vent |
| Fuel Type | Propane |
| Certification | UL 103HT |
| Fireplace Style | Traditional |
| Framing Dimensions | Cleanview Model- 42 7/16""W x 43""H x 19 1/2""D, Louver Model- 42 3/8""W x 37 1/8""H x 17""D" |
| Warranty | Limited Lifetime |
| Resources | Brochure Installation Manual Use Fireplace Instructions In Place Of Venting Instructions Where Applicable You will need Adobe® Acrobat® Reader to view PDF documents |
| Included Items | Cap, Storm Collar, Support Bracket, Ventilation Disk, Centering Bracket, 15ft Of 4" x 6 5/8" Vent Pipe |
| Replaces | 46DVA-48×6-12-FS-F6-SC-VCH / ZDVDFA |
| Material | 304 Grade Stainless Steel |
| Diameter | 4 Inches |
