Original price was: $351.00.$97.99Current price is: $97.99.
- Safe Payments, Happy Customers
- Reliable Payments for Reliable Shopping
- Worry-Free Shopping with Safe Payments
- The quality solution for all your needs.
Bring warmth and relaxation into your home with the Kingsman Gas Fireplace
- BTUs: 19,000
- Included Items: Clean-View Front, Wall Switch And Wire, Decorative Burner, Ignition System, Solid Glass Front, Firebox, Painted Black Interior Walls
- Required Items: Log Set, Venting
- Viewing Area: 29 3/4″W x 18 9/16″H
- Framing Dimensions:
CleanView Face- 38 7/8″W x 36 3/4″H x 17 3/4″D
Louver Face- 36 3/8″W x 36 3/4″H x 15 1/4″D - Warranty: Limited Lifetime

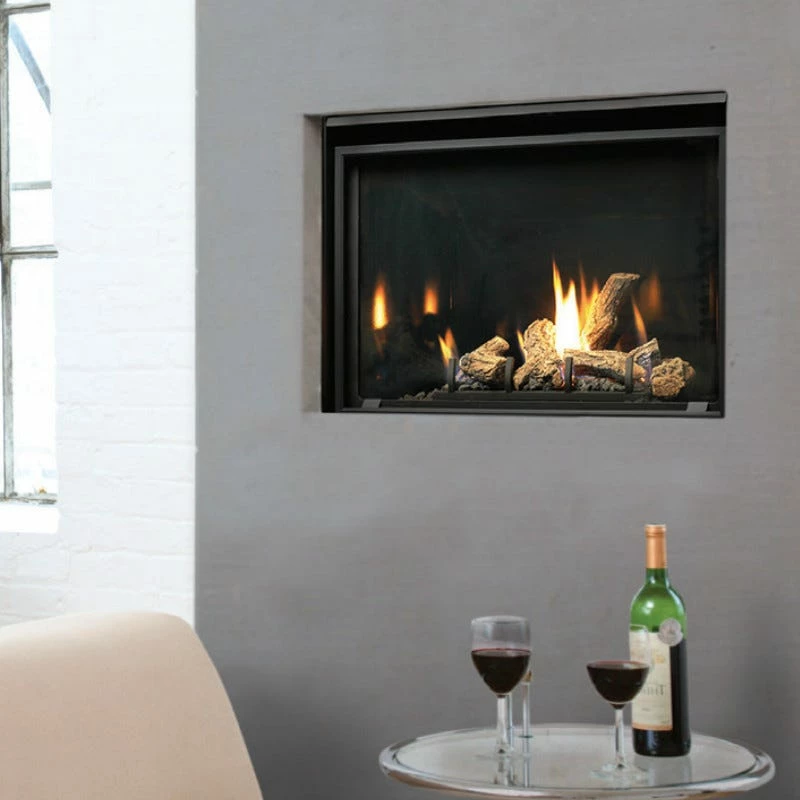

The Kingsman ZCV3622 features a clean view front which allows you to bring your style right up to the viewing area of the fireplace. At 19,000 BTUs it will provide a modest amount of heat that won’t cook you out of your room. This fireplace is very popular for installations that do not require a large fireplace.
The millivolt valve system in this fireplace does not use electricity, instead it has a standing pilot which allows operation during a power outage with hi-low heat and flame adjustment. This fireplace has a flame sensor that continuously monitors the pilot flame and provides 100% gas shut off if the pilot is not sensed, offering safety and reliability throughout your fireplace operation.
ADDITIONAL INFORMATION
- Required Items: Log Set, Venting
- Ignition Type(s): Reliable Standing Pilot OR Gas Saving Electronic Ignition With Battery Backup
- Venting Size/Type: 4″”ID x 7″”OD KIngsman Vent Or Can Be Converted To DuraVent 4″”ID x 6 5/8″”OD
- Vent Location: Top- At A 30 Degree Angle
- Certification: ETL, CSA
KINGSMAN FIREPLACES
Kingsman fireplaces are renowned for their attention to detail. They are not a company that will rush a product to market just to keep up with a quick trend. The appearance of their fireplaces are clean and timeless. The realism of their flame and logs is unmatched. If you are looking for a reliable, budget friendly fireplace, Kingsman is the fireplace you want to own.
GAS DIRECT VENT FIREPLACES
A gas direct vent fireplace is the most popular choice by both builders and homeowners for new construction or a remodel. These fireplaces burn efficiently enough to be a heat source but not too efficient to where the fire lacks realism. The term direct vent refers to the pipe within the pipe venting system that allows the fireplace to be vented both vertically or horizontally (see the manual below for more specifics ). You do not use any room air that you have already paid to heat to operate the appliance. These fireplaces can be installed into wood-framed cavities while being mindful of minimal clearances around the fireplace (see the appliance manual below). Accessories like remote controls, blowers, interior liners, and different fascias (on most models) make it possible to stylize the fireplace to your homes needs.
Fireplace, Millivolt (Standing Pilot) Valve Propane 18,000 BTU
Fireplace, Millivolt (Standing Pilot) Valve NG, 18,000 BTU
Fireplace, IPI (Electronic Pilotless Ignition With Battery Backup) Valve NG, 18,000 BTU
Fireplace, IPI (Electronic Pilotless Ignition With Battery Backup) Valve Propane 18,000 BTU
Log Set â Split Oak (ZCV3622)
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Has a built in thermostat in the handheld transmitter- Control the temperature from wherever the remote is located
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
Remote Control – Electronic Pilotless Ignitionâ On/Off/Thermostat
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting â NG
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting â LP
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- NATURAL GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting/Fan Speed Adjustment â NG
- Works with Kingsman standing pilot fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Features
- Works with Kingsman gas saving Pilotless fireplaces and stoves
- Allows you to adjust the flame height of the appliance from the remote control
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
- PROPANE GAS APPLIANCES ONLY
Remote Control – Electronic Pilotless Ignitionâ Thermostat/Flame Adjusting/Fan Speed Adjustment â LP
- Works with Kingsman standing pilot fireplaces and stoves
- Has a built in thermostat in the handheld transmitter- Control the temperature from wherever the remote is located
- Also turns the appliance on and off
- Works within ~25ft area of the appliance
Kingsman Remote Control Millivolt Standing Pilot â On/Off Thermostat.
- Works with Kingsman Fireplaces
- Fan Kit w/Variable Speed Control
- Heat activated so it comes on when the stove warms up and goes off when it cools down
- Works with the Kingsman ZDV3318 Fireplace
- Looks like brick panels
- Creates a traditional look
- Works with the KingsmanZCV3622 Fireplace

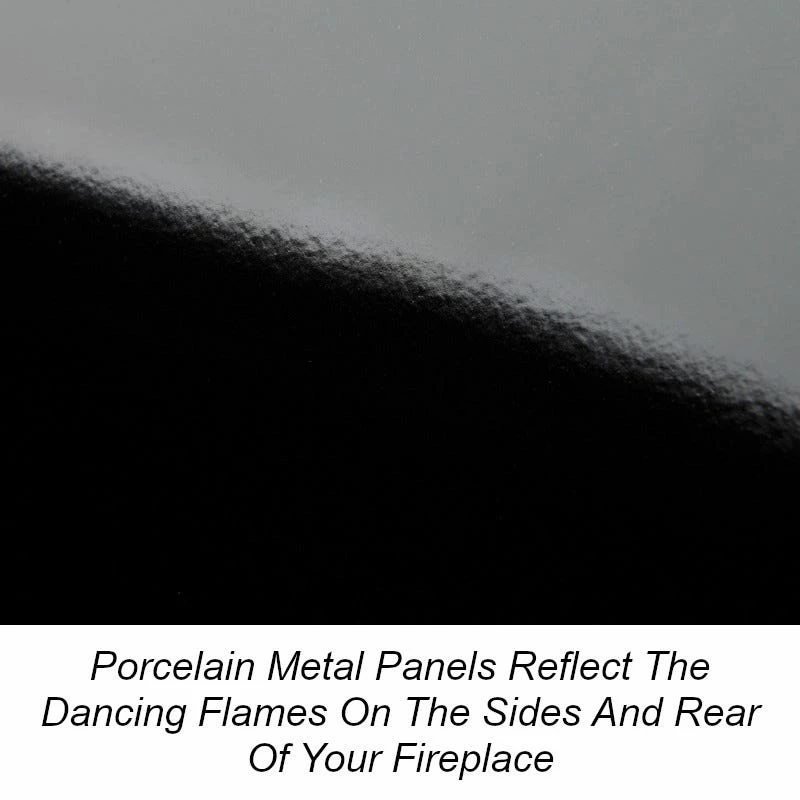

- Porcelain Liner
- Reflects flame off the back and side walls of the stove
- Creates a more modern look

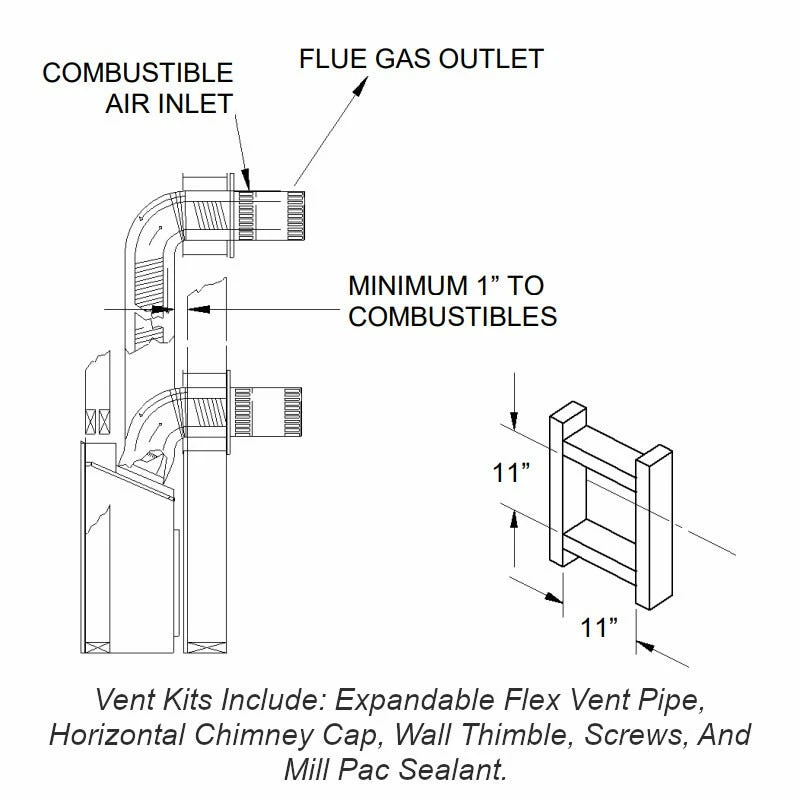

Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Round Termination Vent Starter Kit â 3 FT Length Termination, Wall Thimble, 36″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Square Termination Vent Starter Kit â 3 FT Length Termination, Wall Thimble, 36″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Round Termination Vent Starter Kit â 5 FT Length Termination, Wall Thimble, 60″ Flex Pipe, Screws, Mill Pac
Features
- Fits Kingsman brand direct vent fireplaces
- Includes: Horizontal Square Termination Vent Starter Kit â 5 FT Length Termination, Wall Thimble, 60″ Flex Pipe, Screws, Mill Pac
This kit includes all of the required equipment to vent a Direct Vent fireplace vertically 15ft through a roof using 4″ x 6 5/8″ venting.
- 15ft Of 4″ x 6 5/8″ Vent Pipe
- Fire Stop For Chase Or Attic Penetrations
- 0-6/12 Roof Flashing For Roof Penetrations
- Storm Collar To Seal The Seam At The Roof Flashing
- Chimney Cap To Keep Weather Out And Critters From Getting In
***As individual installations may vary, it is possible that additional equipment is needed or that components may not be needed and returned if not used
DIRECT VENT CHIMNEY LINERS
Whether installing into a masonry chimney or into an a round metal Class A Chimney pipe, direct vent appliances need the proper components to function properly and safely. Direct vent stoves and fireplaces rely on equal amounts of incoming air and exhausting air or the unit just won’t run right. DuraVent tests their products to keep this proper balance so your appliance will function correctly and operate safely.
Single Wall
Double Wall
Class A
This kit includes all of the required equipment to vent a Kingsman Direct Vent fireplace vertically 25ft through a roof using 4″ x 6 5/8″ venting.

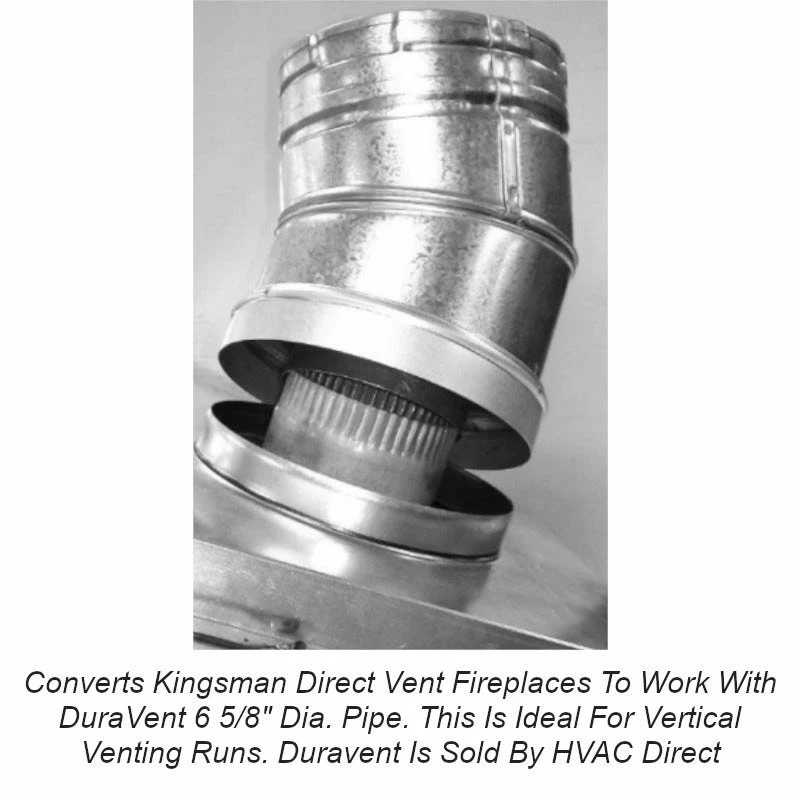

- Kingsman To Duravent Adapter
- 25ft Of 4″ x 6 5/8″ Vent Pipe
- 2 – Fire Stops For Chase Or Attic Penetrations
- 0-6/12 Roof Flashing For Roof Penetrations
- Storm Collar To Seal The Seam At The Roof Flashing
- Chimney Cap To Keep Weather Out And Critters From Getting In
Features
***As individual installations may vary, it is possible that additional equipment is needed or that components may not be needed and returned if not used
DIRECT VENT CHIMNEY Pipe
Direct vent fireplaces are the most popular fireplaces installed into new homes and remodels. All of these fireplaces require a specific type of concentric pipe â a pipe within a pipe. The center pipe exhausts the gases from the fireplace while the outer layer between the two pipes brings in fresh air for the fire to burn. An ingenious system that keeps your already heated air from going up the chimney.
| SKU | ZCV3622 |
|---|---|
| Manufacturer | Kingsman |
| Heating BTU | 19,000 |
| Maximum CFM | 130 CFMs (Optional Blower) |
| Venting Type | Direct Vent |
| Amperage Requirement | Requires 15 Amp Dedicated Circuit |
| Type | Built-In Fireplace, Mobile Home Approved |
| Ignition Type | Reliable Standing Pilot Spark Ignition or Gas Saving Electronic Pilotless |
| Fuel Type | Propane, Natural Gas |
| Certification | By ETL To ANSI And CSA Standards |
| Size Range | 30" – 39" Wide |
| Fireplace Style | Traditional |
| Height | 33.5 Inches |
| Warranty | Limited Lifetime |
| Resources | Kingsman Gas Direct Vent Fireplace Instruction ZDV3318 Brochure You will need Adobe® Acrobat® Reader to view PDF documents. |
